TCP/IP异步套接字更多...

#include <eiennet_async.hpp>

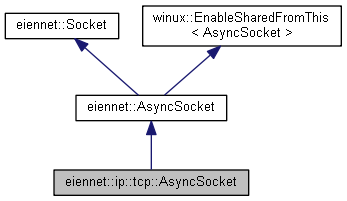

类 eiennet::ip::tcp::AsyncSocket 继承关系图:

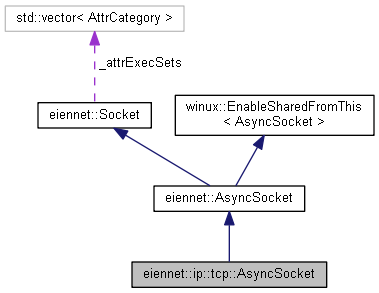

eiennet::ip::tcp::AsyncSocket 的协作图:

Public 类型
typedef eiennet::AsyncSocket	BaseClass

Public 类型继承自 eiennet::AsyncSocket
using	ErrorHandlerFunction = std::function< void(winux::SharedPointer< AsyncSocket > sock) >
	错误处理更多...

Public 类型继承自 eiennet::Socket
enum	AddrFamily { afUnspec = 0, afLocal = 1, afUnix = afLocal, afFile = afLocal, afInet = 2, afAx25 = 3, afIpx = 4, afAppletalk = 5, afNetrom = 6, afBridge = 7, afAtmpvc = 8, afX25 = 9, afInet6 = 10, afRose = 11, afDecnet = 12, afNetbeui = 13, afSecurity = 14, afKey = 15, afNetlink = 16, afRoute = afNetlink, afPacket = 17, afAsh = 18, afEconet = 19, afAtmsvc = 20, afRds = 21, afSna = 22, afIrda = 23, afPppox = 24, afWanpipe = 25, afLlc = 26, afUnknown27 = 27, afUnknown28 = 28, afCan = 29, afTipc = 30, afBluetooth = 31, afIucv = 32, afRxrpc = 33, afIsdn = 34, afPhonet = 35, afIeee802154 = 36, afMax = 37 }
	地址族更多...

enum	SockType { sockUnknown, sockStream, sockDatagram, sockRaw, sockRdm, sockSeqPacket, sockDccp, sockPacket, sockCloexec, sockNonblock }
	套接字类型更多...

enum	Protocol { protoUnspec = 0, protoIp = 0, protoIcmp, protoIgmp, protoIpip, protoIpv4 = protoIpip, protoTcp, protoEgp, protoPup, protoUdp, protoIdp, protoTp, protoDccp, protoIpv6, protoRsvp, protoGre, protoEsp, protoAh, protoMtp, protoBeetph, protoEncap, protoPim, protoComp, protoSctp, protoUdplite, protoRaw, protoMax }
	协议更多...

typedef std::function< void(size_t hadBytes, void *param) >	FunctionSuccessCallback

Public 类型继承自 winux::EnableSharedFromThis< AsyncSocket >
using	_EsftType = EnableSharedFromThis

静态 Public 成员函数
static winux::SharedPointer< AsyncSocket >	New (IoService &ioServ, int sock, bool isNewSock=false)

static winux::SharedPointer< AsyncSocket >	New (IoService &ioServ)

静态 Public 成员函数继承自 eiennet::AsyncSocket
static winux::SharedPointer< AsyncSocket >	New (IoService &ioServ, int sock=-1, bool isNewSock=false)

static winux::SharedPointer< AsyncSocket >	New (IoService &ioServ, AddrFamily af, SockType sockType, Protocol proto)

静态 Public 成员函数继承自 eiennet::Socket
static int	ErrNo ()
	从errno获取错误码更多...

Protected 成员函数
	AsyncSocket (IoService &ioServ, int sock, bool isNewSock=false)

	AsyncSocket (IoService &ioServ)

Protected 成员函数继承自 eiennet::AsyncSocket
	AsyncSocket (IoService &ioServ, int sock=-1, bool isNewSock=false)
	构造函数1 更多...

	AsyncSocket (IoService &ioServ, AddrFamily af, SockType sockType, Protocol proto)
	构造函数2 更多...

virtual void	onError (winux::SharedPointer< AsyncSocket > sock)

Protected 成员函数继承自 eiennet::Socket
bool	_tryCreate (AddrFamily af, bool hasAf, SockType sockType, bool hasSockType, Protocol proto, bool hasProto)
	如果未创建Socket则尝试创建。如果创建成功或已创建则返回true，如果创建失败则返回false 更多...

void	_membersInit ()

void	_resetManaged ()

Protected 成员函数继承自 winux::EnableSharedFromThis< AsyncSocket >
constexpr	EnableSharedFromThis () noexcept

	EnableSharedFromThis (EnableSharedFromThis const &) noexcept

EnableSharedFromThis &	operator= (EnableSharedFromThis const &) noexcept

额外继承的成员函数
Public 成员函数继承自 eiennet::AsyncSocket
winux::SharedPointer< AsyncSocket >	accept (EndPoint *ep=nullptr)

void	setDataPtr (void *data)
	设置套接字关联数据更多...

void *	getDataPtr () const
	获取套接字关联数据更多...

template<typename _Ty >
_Ty *	getDataPtr () const
	获取套接字关联数据更多...

IoService &	getService () const
	获取IO服务对象更多...

void	acceptAsync (IoAcceptCtx::OkFunction cbOk, winux::uint64 timeoutMs=-1, IoAcceptCtx::TimeoutFunction cbTimeout=nullptr)
	接受客户连接（异步）更多...

void	connectAsync (EndPoint const &ep, IoConnectCtx::OkFunction cbOk, winux::uint64 timeoutMs=-1, IoConnectCtx::TimeoutFunction cbTimeout=nullptr)
	连接服务器（异步）更多...

void	recvUntilSizeAsync (size_t targetSize, IoRecvCtx::OkFunction cbOk, winux::uint64 timeoutMs=-1, IoRecvCtx::TimeoutFunction cbTimeout=nullptr)
	接收直到指定大小的数据（异步）更多...

void	recvAsync (IoRecvCtx::OkFunction cbOk, winux::uint64 timeoutMs=-1, IoRecvCtx::TimeoutFunction cbTimeout=nullptr)
	接收数据（异步）更多...

void	sendAsync (void const *data, size_t size, IoSendCtx::OkFunction cbOk, winux::uint64 timeoutMs=-1, IoSendCtx::TimeoutFunction cbTimeout=nullptr)
	发送数据（异步）更多...

void	sendAsync (winux::Buffer const &data, IoSendCtx::OkFunction cbOk, winux::uint64 timeoutMs=-1, IoSendCtx::TimeoutFunction cbTimeout=nullptr)
	发送数据（异步）更多...

void	recvFromUntilSizeAsync (size_t targetSize, IoRecvFromCtx::OkFunction cbOk, winux::uint64 timeoutMs=-1, IoRecvFromCtx::TimeoutFunction cbTimeout=nullptr)
	无连接，接收直到指定大小的数据（异步）更多...

void	recvFromAsync (IoRecvFromCtx::OkFunction cbOk, winux::uint64 timeoutMs=-1, IoRecvFromCtx::TimeoutFunction cbTimeout=nullptr)
	无连接，接收数据（异步）更多...

void	sendToAsync (EndPoint const &ep, void const *data, size_t size, IoSendToCtx::OkFunction cbOk, winux::uint64 timeoutMs=-1, IoSendToCtx::TimeoutFunction cbTimeout=nullptr)
	无连接，发送数据（异步）更多...

void	sendToAsync (EndPoint const &ep, winux::Buffer const &data, IoSendToCtx::OkFunction cbOk, winux::uint64 timeoutMs=-1, IoSendToCtx::TimeoutFunction cbTimeout=nullptr)
	无连接，发送数据（异步）更多...

void	onErrorHandler (ErrorHandlerFunction handler)

Public 成员函数继承自 eiennet::Socket
	Socket (int sock=-1, bool isNewSock=false)
	构造函数1，包装现有socket描述符更多...

	Socket (AddrFamily af, SockType sockType, Protocol proto)
	构造函数2，指定socket的'地址簇'，'类型'，'协议' 更多...

virtual	~Socket ()
	移动构造函数更多...

AddrFamily	getAddrFamily () const
	获取Socket的create()参数：'地址簇' 更多...

void	setAddrFamily (AddrFamily af)
	指定Socket的create()参数：'地址簇' 更多...

SockType	getSockType () const
	获取Socket的create()参数：'类型' 更多...

void	setSockType (SockType sockType)
	指定Socket的create()参数：'类型' 更多...

Protocol	getProtocol () const
	获取Socket的create()参数：'协议' 更多...

void	setProtocol (Protocol proto)
	指定Socket的create()参数：'协议' 更多...

void	getParams (AddrFamily af, SockType sockType, Protocol *proto)
	获取Socket的create()参数：'地址簇'，'类型'，'协议' 更多...

void	setParams (AddrFamily af, SockType sockType, Protocol proto)
	指定Socket的create()参数：'地址簇'，'类型'，'协议' 更多...

bool	create (AddrFamily af, SockType sockType, Protocol proto)
	根据'地址簇'，'类型'，'协议'创建一个socket 更多...

bool	create ()
	根据内部存储的'地址簇'，'类型'，'协议'创建一个socket 更多...

int	close ()
	关闭socket描述符更多...

int	shutdown (int how=SdSend)
	关掉socket的相应操作，但并不会close套接字。更多...

int	send (void const *data, size_t size, int msgFlags=MsgDefault)
	发送数据。返回已发送大小，出错返回-1。更多...

int	send (winux::AnsiString const &data, int msgFlags=MsgDefault)
	发送数据。返回已发送大小，出错返回-1。更多...

int	send (winux::Buffer const &data, int msgFlags=MsgDefault)
	发送数据。返回已发送大小，出错返回-1。更多...

bool	sendUntil (size_t targetSize, void const *data, int msgFlags=MsgDefault)
	发送数据，直到发送完指定大小的数据。更多...

bool	sendUntil (winux::AnsiString const &data, int msgFlags=MsgDefault)
	发送字符串，直到发送完该长度的字符串。更多...

bool	sendUntil (winux::Buffer const &data, int msgFlags=MsgDefault)
	发送缓冲区，直到发送完该大小的缓冲区。更多...

int	sendWaitUntil (size_t targetSize, void const data, size_t hadSent, double sec, int rcWait, FunctionSuccessCallback eachSuccessCallback=FunctionSuccessCallback(), void param=nullptr, int msgFlags=MsgDefault)
	发送数据，直到发送完指定大小的数据或超时。更多...

int	sendWaitUntil (winux::AnsiString const &data, size_t hadSent, double sec, int rcWait, FunctionSuccessCallback eachSuccessCallback=FunctionSuccessCallback(), void *param=nullptr, int msgFlags=MsgDefault)

int	sendWaitUntil (winux::Buffer const &data, size_t hadSent, double sec, int rcWait, FunctionSuccessCallback eachSuccessCallback=FunctionSuccessCallback(), void *param=nullptr, int msgFlags=MsgDefault)

template<typename _PodType >
bool	sendUntilType (_PodType const &v, size_t size=sizeof(_PodType), int msgFlags=MsgDefault)
	发送一个`Plain of Data`类型的变量，若成功返回true，否则返回false。更多...

int	recv (void *buf, size_t size, int msgFlags=MsgDefault)
	尝试接收size大小数据。返回实际接收的数据大小，出错返回-1。更多...

winux::Buffer	recv (size_t size, int msgFlags=MsgDefault)
	尝试接收size大小数据，返回实际收到的数据Buffer。更多...

bool	recvUntilTarget (winux::AnsiString const &target, winux::GrowBuffer data, winux::GrowBuffer extraData, int msgFlags=MsgDefault)
	接收数据，直到碰到target指定的数据。data返回接收到的数据，data里可以已有部分数据，extraData返回额外接收的数据。更多...

int	recvWaitUntilTarget (winux::AnsiString const &target, winux::GrowBuffer data, winux::GrowBuffer extraData, size_t hadRead, size_t startpos, size_t pos, double sec, int rcWait, FunctionSuccessCallback eachSuccessCallback=FunctionSuccessCallback(), void *param=nullptr, int msgFlags=MsgDefault)
	接收数据，直到碰到target指定的数据或者超时。更多...

bool	recvUntilSize (size_t targetSize, winux::GrowBuffer *data, int msgFlags=MsgDefault)
	接收数据，直到收到指定大小的数据。data返回接收到的数据。更多...

int	recvWaitUntilSize (size_t targetSize, winux::GrowBuffer data, size_t hadRead, double sec, int rcWait, FunctionSuccessCallback eachSuccessCallback=FunctionSuccessCallback(), void param=nullptr, int msgFlags=MsgDefault)
	接收数据，直到收到指定大小的数据或者超时。更多...

template<typename _PodType >
bool	recvUntilType (_PodType *v, size_t size=sizeof(_PodType), int msgFlags=MsgDefault)
	接收一个`Plain of Data`类型的变量，若成功返回true，否则返回false。更多...

winux::Buffer	recvAvail (int msgFlags=MsgDefault)
	接收不用阻塞即可接收的数据，返回收到的数据Buffer。更多...

winux::Buffer	recvWaitAvail (double sec, int *rcWait, int msgFlags=MsgDefault)
	接收已到达的数据，如果没有到达数据则等待有数据到达或超过指定时间，返回收到的数据Buffer。更多...

int	sendTo (EndPoint const &ep, void const *data, size_t size, int msgFlags=MsgDefault)
	无连接模式发送数据到指定端点。返回已发送大小，出错返回-1。更多...

int	sendTo (EndPoint const &ep, winux::AnsiString const &data, int msgFlags=MsgDefault)
	无连接模式发送数据到指定端点。返回已发送大小，出错返回-1。更多...

int	sendTo (EndPoint const &ep, winux::Buffer const &data, int msgFlags=MsgDefault)
	无连接模式发送数据到指定端点。返回已发送大小，出错返回-1。更多...

int	recvFrom (EndPoint ep, void buf, size_t size, int msgFlags=MsgDefault)
	无连接模式接收数据。返回已接收的大小，出错返回-1。更多...

winux::Buffer	recvFrom (EndPoint *ep, size_t size, int msgFlags=MsgDefault)
	无连接模式接收数据。返回实际收到的数据Buffer。更多...

bool	connect (EndPoint const &ep)
	连接服务器更多...

bool	bind (EndPoint const &ep)
	绑定地址。若套接字尚未创建则创建套接字更多...

bool	listen (int backlog)
	监听更多...

bool	accept (int sock, EndPoint ep=NULL)
	接受一个客户连接更多...

winux::SharedPointer< Socket >	accept (EndPoint *ep=NULL)
	接受一个客户连接更多...

int	getRecvBufSize () const
	获取接收缓冲区大小更多...

bool	setRecvBufSize (int optval)
	设置接收缓冲区大小更多...

int	getSendBufSize () const
	获取发送缓冲区大小更多...

bool	setSendBufSize (int optval)
	设置发送缓冲区大小更多...

winux::uint32	getRecvTimeout () const
	获取接收超时(ms) 更多...

bool	setRecvTimeout (winux::uint32 optval)
	设置接收超时(ms) 更多...

winux::uint32	getSendTimeout () const
	获取发送超时(ms) 更多...

bool	setSendTimeout (winux::uint32 optval)
	设置发送超时(ms) 更多...

bool	getReUseAddr () const
	获取是否开启了重用地址更多...

bool	setReUseAddr (bool optval)
	设置socket是否重用地址，默认false不重用更多...

bool	getBroadcast () const
	获取是否启用广播更多...

bool	setBroadcast (bool optval)
	设置socket是否广播，默认false非广播更多...

bool	getIpv6Only () const
	获取IPV6套接字是否只启用IPV6功能，Windows默认true，Linux默认false 更多...

bool	setIpv6Only (bool optval)
	设置IPV6套接字是否只启用IPV6功能，Windows默认true，Linux默认false 更多...

int	getError () const
	通过getsockopt()+SO_ERROR获取仅属于socket的错误更多...

SockType	getType () const
	获取socket类型更多...

bool	isListening () const
	socket是否为监听模式更多...

int	getAvailable () const
	获取可不阻塞接收的数据量更多...

bool	setBlocking (bool blocking)
	设置socket阻塞模式，true为阻塞，false为非阻塞。更多...

int	get () const
	Windows:socket句柄，或Linux:socket描述符更多...

	operator bool () const
	判断Socket是否有效更多...

Public 成员函数继承自 winux::EnableSharedFromThis< AsyncSocket >
SharedPointer< AsyncSocket >	sharedFromThis ()

SharedPointer< const AsyncSocket >	sharedFromThis () const

WeakPointer< AsyncSocket >	weakFromThis () noexcept

WeakPointer< const AsyncSocket >	weakFromThis () const noexcept

静态 Public 属性继承自 eiennet::Socket
static int const	MsgDefault

static int const	MsgOob

static int const	MsgPeek

static int const	MsgDontRoute

static int const	MsgWaitAll

static int const	MsgPartial

static int const	MsgInterrupt

static int const	MsgMaxIovLen

static int const	SdReceive

static int const	SdSend

static int const	SdBoth

Protected 类型继承自 eiennet::Socket
enum	AttrCategory { attrNone, attrBlocking, attrBroadcast, attrReUseAddr, attrSendTimeout, attrRecvTimeout, attrSendBufSize, attrRecvBufSize, attrIpv6Only }

Protected 属性继承自 eiennet::AsyncSocket
ErrorHandlerFunction	_ErrorHandler

Protected 属性继承自 eiennet::Socket
AddrFamily	_addrFamily

SockType	_sockType

Protocol	_protocol

winux::uint32	_attrSendTimeout

winux::uint32	_attrRecvTimeout

int	_attrSendBufSize

int	_attrRecvBufSize

bool	_attrBlocking

bool	_attrBroadcast

bool	_attrReUseAddr

bool	_attrIpv6Only

std::vector< AttrCategory >	_attrExecSets

int	_sock

bool	_isNewSock

详细描述

TCP/IP异步套接字

在文件 eiennet_async.hpp 第 287 行定义.

成员类型定义说明

typedef eiennet::AsyncSocket eiennet::ip::tcp::AsyncSocket::BaseClass

在文件 eiennet_async.hpp 第 290 行定义.

构造及析构函数说明

eiennet::ip::tcp::AsyncSocket::AsyncSocket	(	IoService &	ioServ,
		int	sock,
		bool	isNewSock = `false`
	)

inlineprotected

在文件 eiennet_async.hpp 第 293 行定义.

eiennet::ip::tcp::AsyncSocket::AsyncSocket ( IoService & ioServ )

inlineexplicitprotected

在文件 eiennet_async.hpp 第 295 行定义.

成员函数说明

static winux::SharedPointer<AsyncSocket> eiennet::ip::tcp::AsyncSocket::New	(	IoService &	ioServ,
		int	sock,
		bool	isNewSock = `false`
	)

inlinestatic

在文件 eiennet_async.hpp 第 298 行定义.

static winux::SharedPointer<AsyncSocket> eiennet::ip::tcp::AsyncSocket::New ( IoService & ioServ )

inlinestatic

在文件 eiennet_async.hpp 第 303 行定义.
